EAC RECEPTACLES (continued)
69
SERIES EAC

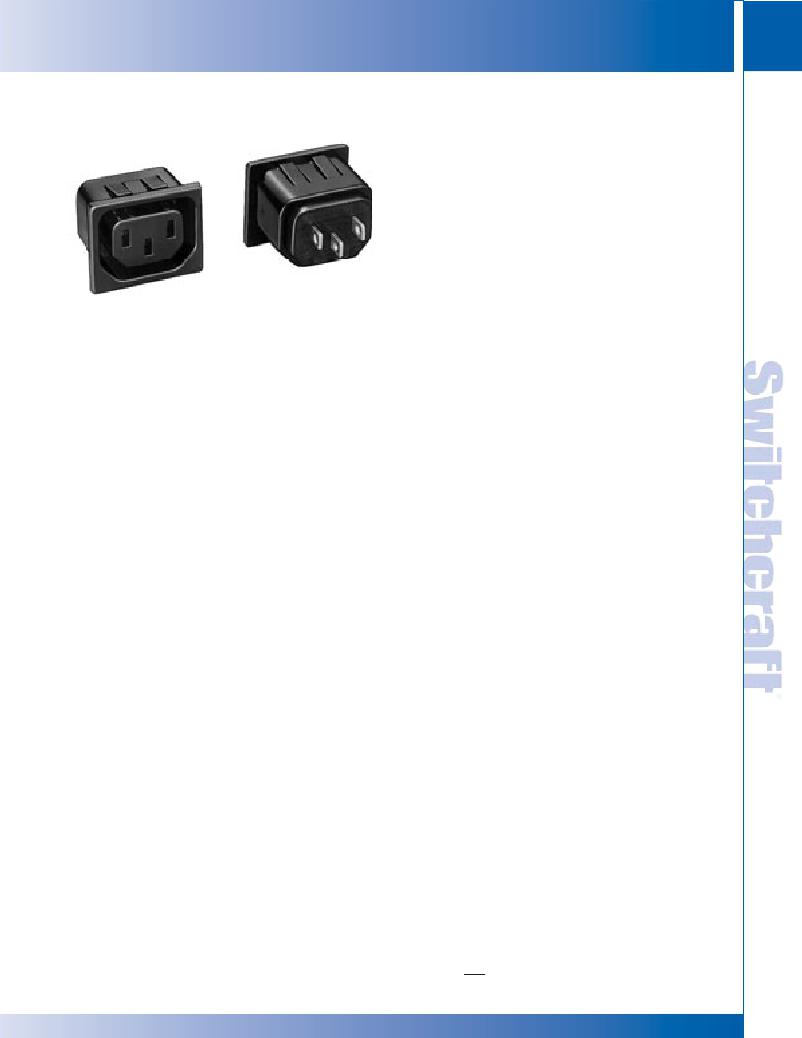

EAC405
SPECIFICATIONS
ELECTRICAL
Insulation Resistance: 2 million megohms @ 500 V DC.
Dielectric Strength: 1500 V (rms).
Arcing Test: Meets UL 498 Standard.
MECHANICAL
Solderability Standard: Meets MIL-STD-202, method 208,
EIA RS-186-9E.
ENVIRONMENTAL
Thermal Range: -55° C to +65° C (except EAC45x series).
Salt Spray: Meets MIL-STD-202, method 101; EIA-RS-186-5E,
method 5.
MATERIAL
Shell: EAC307 through EAC327. Black polyester. EAC303,
EAC307 through EAC315. UL flammability rating of UL94 V-0,
yellow card #E45575.
EAC309 through EAC327, EAC333. Black polyester, UL
flammability rating of UL94 V-0, yellow card #E45575.
EAC233, EAC233S, EAC305, EAC325, and EAC333S. Black
polycarbonate, UL flammability rating of UL94 V-0, yellow
card #E45329.
EAC323, EAC409 through EAC411 Black polycarbonate, UL
flammability rating, or equivalent UL94 V-0, yellow card
#E33640, or equivalent.
Pins, Contacts and Terminals: Plated copper alloy.
? EAC227 —2-pin male receptacle with standard solder lug
terminals, similar to EAC327.
? EAC233 —2-pin, male receptacle with right-angle housing
for PC mount. PC terminals project .130" (3.3 mm) to extend
through PC board. Rear of panel mount. Two, .136 " (3.45
EAC305 —3-contact female receptacle. Front mount with
two, #4 screws or .094" (2.38 mm) diameter rivets
(not supplied).
EAC309 —3-pin male receptacle with standard lug terminals.
Mounts from front or rear of panel with two, #5 screws or
.125 " (3.18 mm) diameter rivets (not supplied).
EAC311 —3-pin male receptacle with FASTON ? terminals.
Mounts from front or rear of panel with two, #5 screws or
.125 " (3.18 mm) diameter rivets (not supplied).
? EAC315 —3-pin male receptacle with long solder lug terminals.
Mounts from front or rear of panel with two, #5 screws or .125"
(3.18 mm) diameter rivets (not supplied).
? EAC319 —3-pin male receptacle with short solder lug
terminals. Mounts from front or rear of panel with two,
#5 screws or .125" (3.18 mm) diameter rivets (not supplied).
? EAC323 —3-pin male receptacle with short solder lug terminals.
Extended socket housing (mounting flange on rear of receptacle)
provides more behind panel clearance. Mounts with two,
#4 screws or .094" (2.38 mm) diameter rivets (not supplied).
EAC325 —3-contact female receptacle with short solder lug
terminals. Extended housing (mounting flange on rear of
receptacle) provides more behind panel depth. Mounts with two,
#4 screws or .094" (2.38 mm) diameter rivets (not supplied).
EAC327 —3-pin male receptacle, similar to EAC319 except
with standard solder lugs.
EAC333 —3-pin, 10A, 250V male receptacle with right-angle
housing for PC mount. PC terminal and hole mounting details
are the same as for EAC233. Ground pin is integral with
ground solder lug on rear of receptacle.
? EAC333S —Similar to EAC333, but with two, snap-in
retainers through mounting flanges for PC mount.
? EAC405 —3-contact female receptacle with standard solder
lug terminals. Snap-in panel mounting.
EAC409 —3-pin male receptacle with standard solder lug
terminals. Snap-in panel mounting.
EAC411 —3-pin male receptacle with FASTON terminals.
Snap-in panel mounting.
EAC413 —3-pin male receptacle with FASTON terminals on
LINE and NEUTRAL and a solder lug on EARTH GROUND.
Snap-in panel mounting.
EAC451 —3-contact female receptacle with straight PC
terminals for use in “HOT” applications. Snap-in panel mounting.
EAC453 —Same as EAC451 except with solder lug
terminations.
mm) diameter holes permit fastening to PC board; two
EAC455 —Same
as
EAC451
except
with
FASTON
additional .136" (3.45 mm) holes are for fastening to panel or
chassis, if required.
? EAC233S —Similar to EAC233, but with two, snap-in
retainers through mounting flanges for PC mount.
terminations.
EAC457 —Same as EAC451 except with FASTON power
terminations and solder lug ground termination.
? Available on special order only; contact Switchcraft for price and delivery.
